Product images may show optional equipment. Refer to the selected package description for included items.
Remote operations
Plan a remote-flight setup with a dock and the matching aircraft configuration.
$15,890.00 USD
SKU: CP.EN.00000590.01
Available to order
Package contents vary by configuration. Review the details for the selected package.
DJI Dock 3 for Matrice 4D / 4TDDock-only configuration. The matching Matrice 4D Series aircraft is a separate selection.
$15,890.00 USD
DJI Dock 3 with DJI Matrice 4D BundleDock 3 paired with Matrice 4D for mapping-oriented remote operations.
$20,799.00 USD
DJI Dock 3 with DJI Matrice 4TD BundleDock 3 paired with Matrice 4TD for visual and thermal remote operations.
$21,599.00 USD| Select your package | Included essentials | Availability |
|---|---|---|
| DJI Dock 3 for Matrice 4D / 4TD$15,890.00 USD | Dock-only configuration. The matching Matrice 4D Series aircraft is a separate selection. | Available to order |
| DJI Dock 3 with DJI Matrice 4D Bundle$20,799.00 USD | Dock 3 paired with Matrice 4D for mapping-oriented remote operations. | Available to order |
| DJI Dock 3 with DJI Matrice 4TD Bundle$21,599.00 USD | Dock 3 paired with Matrice 4TD for visual and thermal remote operations. | Available to order |
FIND YOUR FIT
DJI Dock 3 for Matrice 4D / 4TD
Assess the installation location, power supply, network connectivity and operational coverage.
Dock 3 supports the Matrice 4D Series. Match 4D or 4TD to your imaging requirements.
Include cloud operations, installation and ongoing site maintenance in your project scope.
DJI ENTERPRISE · PRODUCT DETAILS
Bring scheduled capture and remote operations to a suitable site. Start with the aircraft and mission, then confirm power, networking and installation.
4D uses a mechanical-shutter mapping camera. 4TD adds thermal imaging and NIR support. A dock-only listing does not include either aircraft.
Assess landing clearance, local conditions, power, networking and communications coverage before installation.
Confirm FlightHub 2 requirements, permissions and maintenance responsibilities with the deployment team. A relay is optional, based on the site.
Before you order
No. Dock 3 is designed for the Matrice 4D Series. Matrice 4E and 4T are different platforms and are not the matching Dock 3 aircraft.
Compare the configurations above, including the controller, batteries and included equipment. The selected package name and SKU identify what you are ordering; optional extras are listed separately. Ask DRT if an item you need is not listed.
No. Select only the extras you need and check their quantities. The subtotal combines your selected product and accessories; the cart shows them as separate items. Review package contents first to avoid duplicates.
Yes. Send DRT your intended use, exact model, existing equipment and any camera, payload or charging requirements. We can help check the configuration and direct you to the relevant manuals and service options.
Support & resources
Tell us what you want to capture, inspect or accomplish. DRT can help you choose the platform and accessories for the job.
Get help choosing a package, checking compatibility or planning a field-ready setup.
Find official user manuals, firmware and software for your model.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
We offer reliable shipping across the United States. Orders over $599 qualify for free standard shipping.
Shipping options and estimated delivery times are shown at checkout and may vary by product and destination.
Products containing lithium-ion batteries may be subject to special shipping and carrier requirements.
For large equipment or enterprise orders, please contact our sales team for shipping assistance.
Customer Support
Need help choosing the right product, checking an order, or troubleshooting a product?
Our team can assist with product selection, order status, shipping, warranty, technical support, and general product questions.
Sales & Product Inquiries
Phone: +1 (888) 356-6818
Email: sales@droneroboticstec.com
Technical Support
+1 (888) 356-6818 Ext. 804 — Christopher
+1 (888) 356-6818 Ext. 806 — Lucas
Working Hours
Mon–Fri: 9:00 AM–5:00 PM PST
Contact Us
Have a question before placing an order?
Contact our sales team for product recommendations, availability, pricing, enterprise solutions, and bulk orders.
Sales Team
Phone: +1 (888) 356-6818
Email: sales@droneroboticstec.com
For enterprise, commercial, bulk, or dealer inquiries, we're happy to help you find the right solution.

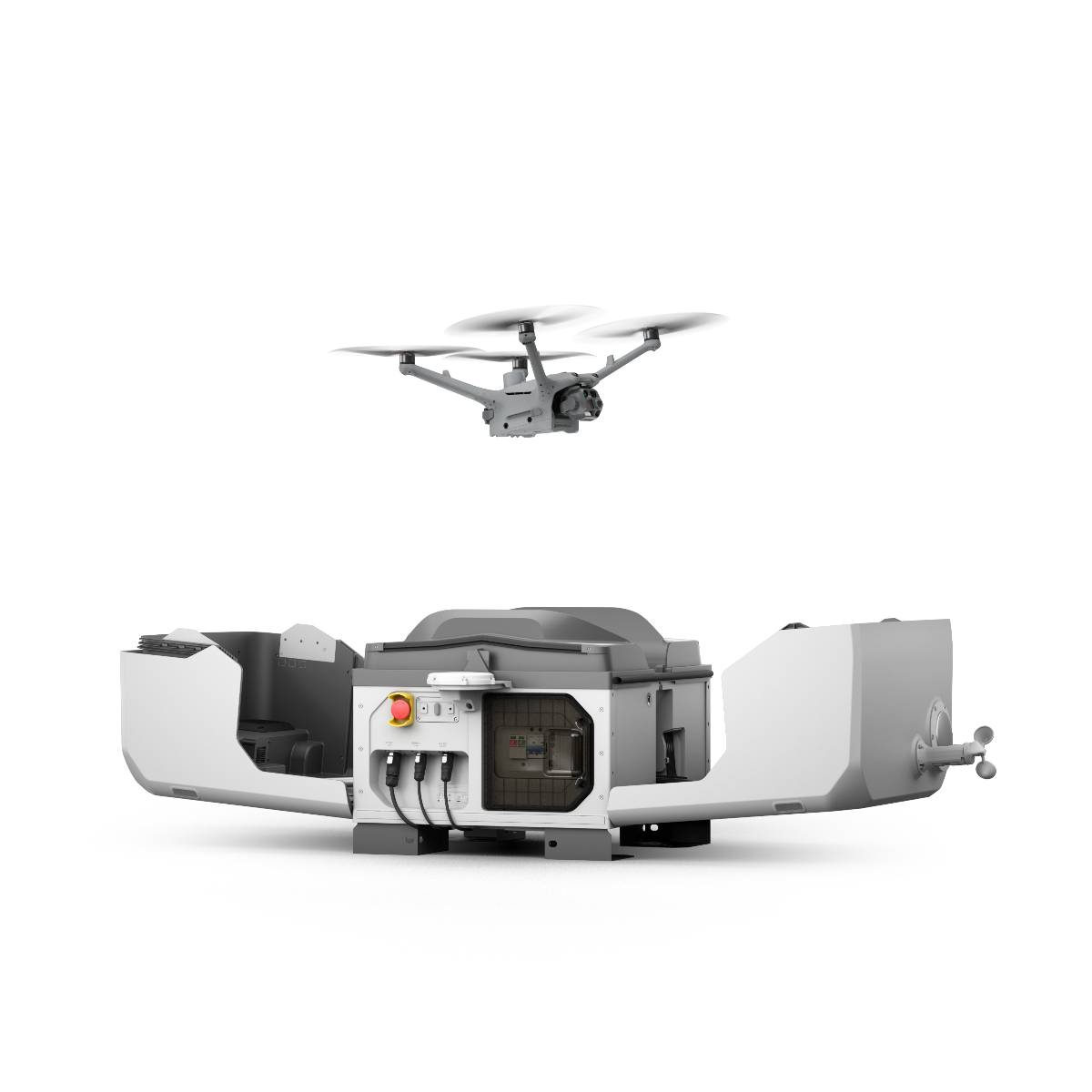

Equipped with Matrice 4D or Matrice 4TD high-performance drones, DJI Dock 3 empowers 24/7 remote operations and, for the first time, supports mobile vehicle-mounted deployment, effortlessly adapting to various environments. The drones utilize the same cameras as the Matrice 4 Series but offer improved flight and protection performance. They can also pair with DJI RC Plus 2 Enterprise for standalone use. With DJI FlightHub 2's intelligent features, pilots can significantly cut down on operational time and labor costs, maximizing efficiency and savings.
Built to withstand extreme heat, DJI Dock 3 operates and charges seamlessly even in temperatures soaring up to 50° C (122° F), ensuring efficient operations.
Perform critical tasks reliably despite frigid temperatures in environments where temperatures can plunge below -20°C (-4°F). After preheating, it can operate stably in harsh environments as low as -30° C (-22° F).
Both Matrice 4D and 4TD demonstrate remarkable flight performance. In winds as strong as 12 m/s, they can achieve stable takeoff and landing, and stay in the air for up to 32 minutes. [1]
Dock 3's design safeguards its internal systems from external conditions by encapsulating electronic components, allowing for seamless operations even in harsh environments.
Standard equipped with low-noise anti-ice propellers, the Matrice 4D and 4TD drones can maintain stable flight even in freezing rain. The silent design reduces noise during operations.
DJI Dock 3 can be flexibly deployed, redefining the paradigm of operations. For fixed deployments, signal quality can be enhanced by installing the next-gen D-RTK 3 Relay at elevated locations, allowing for flexible site selection of the dock. With the new DJI Enterprise app, deployment can be completed using just a smartphone. [3] Additionally, for the first time, a DJI Dock supports vehicle-mounted deployment, enabling more efficient dispatch during urgent operations and long-distance inspections.
The new D-RTK 3 Relay Fixed Deployment Version [4] offers superior anti-interference performance for video transmission and satellite acquisition. Installing it at elevated locations can effectively address RTK and video transmission signal issues caused by obstructions, extending the maximum transmission distance to 25 km. This capability allows for flexible site selection of Dock 3 based on actual operational needs.
DJI Dock 3 is DJI's first Dock to support mobile vehicle-mounted deployment. [6] Optimized for this purpose, the Dock's overall structure, components, and air conditioning have undergone vehicle vibration testing, with new features such as horizontal calibration and cloud-based dock location calibration. For emergency operations or long-distance inspections, using DJI Dock 3 Vehicle-Mounted Gimbal Mount [4] for mobile deployment provides a convenient solution when fixed deployment is impractical in temporary scenarios.
Take off quickly and arrive at the emergency site to improve situational awareness. After enabling optimal route planning, use FlyTo Tasks to reach a designated point 1 km away and at 100m height within 100 seconds. [12]
In emergency scenarios, real-time data transmission and rapid modeling can be achieved during flight. Data transfer can be completed immediately upon landing, [20]and a rough model can be quickly generated via the cloud, significantly enhancing efficiency.
Take off quickly and arrive at the emergency site to improve situational awareness. After enabling optimal route planning, use FlyTo Tasks to reach a designated point 1 km away and at 100m height within 100 seconds. [12]
When paired with DJI FlightHub 2, Dock 3 greatly enhances the intelligence and efficiency of remote operations.
The new automated flight route is useful across various scenarios, including public safety and inspections. Once a flight route is established, the drone can automatically detect and capture images or videos of subjects like vehicles and vessels and infrared temperature anomalies, and send notifications to the operators.
The new intelligent change detection feature enables efficient periodical analysis of changes in an area, assisting operators in environmental protection, natural disaster relief and crack detection for more effective and informed decision making.
Operators can utilize the powerful auto-zoom capabilities of the Matrice 4D Series to quickly track a subject, such as a vehicle or a vessel for efficient follow-up review.
The Virtual Cockpit remote control interface has been significantly enhanced with the introduction of the new Mouselook feature. This enhancement allows the drone to adjusts its attitude and gimbal orientation automatically, enabling rapid and precise centering of the frame, thus achieving "point and see."
Take off quickly and arrive at the emergency site to improve situational awareness. After enabling optimal route planning, use FlyTo Tasks to reach a designated point 1 km away and at 100m height within 100 seconds. [12]
Engine upgrade significantly reduces [11] live view latency on FlightHub 2, providing reliable support for real-time decision-making.
In emergency scenarios, real-time data transmission and rapid modeling can be achieved during flight. Data transfer can be completed immediately upon landing, [20]and a rough model can be quickly generated via the cloud, significantly enhancing efficiency.
The all-new water and dust-resistant DJI Matrice 4D and 4TD are specifically designed for DJI Dock 3, offering extended flight time, and can pair with DJI RC Plus 2 Enterprise for standalone use. Both drones are equipped with a wide-angle camera, a medium tele camera, a tele camera and a Laser Range Finder. Matrice 4D is highly effective for professional high-precision mapping and detailed surface inspections. Matrice 4TD is equipped with an infrared thermal camera and a new NIR auxiliary light, making it suitable for a wide range of applications such as infrastructure inspections, emergency response, and public safety.
When fully charged, Matrice 4D/4TD delivers an impressive flight time of 47 minutes at a speed of 15 m/s, achieving a remarkable 37% increase in operation time. [11] At a radius of 10 km, these drones provide 18 minutes of operation. [12] Both models are designed to endure harsh conditions with an impressive IP55 dust and water resistance rating.
The Obstacle Sensing Module [4] for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar technologies for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s in complex power line crossings, as well as enhanced positioning in low-light conditions. [5] Operational safety are ensured for varying environments of power distribution network and the intricate layouts of substations.[15]
Matrice 4D Series drones feature four high-resolution, low-light fisheye lenses, significantly enhancing [11] visual low-light positioning and obstacle sensing capabilities. The new Night Scene mode offers full-color night vision. Matrice 4TD additionally provides IR-Cut Filter feature for black-and-white night vision and 24/7 operations, as well as a new NIR auxiliary light that can cover distances up to 100 m. [10]
Matrice 4TD's infrared thermal camera supports the UHR Infrared Image mode with image resolutions up to 1280 × 1024 and a High-Res mode for detailed temperature readings.
Matrice 4D Series drones are equipped with medium tele and tele cameras with foreground stabilization. The medium tele camera is effective for medium-range inspections, detecting pins and cracks from 10 meters, and clearly reading instrument data at substations. [16]
The 48 MP tele camera captures details, like signs, from up to 250 m away. [17] When using Matrice 4TD's tele camera as the aircraft is hovering in a windless environment, the gimbal can tilt upwards by 80 degrees, making bridge underside defects clearly visible.
Upgraded stabilization keeps foreground subjects clear during telephoto shots at 10x zoom or higher.
Matrice 4D Series drones excel in high-precision mapping, offering a new 5-direction oblique photography function, 3-direction orthophoto photography, [5][18], and real-time terrain following to meet various mapping requirements.
DJI FlightHub 2 has been upgraded for Matrice 4D/4TD operations. This upgrade introduces a range of flight route planning options, including Smart 3D Capture routes [5], geometric routes, and slope routes, enhancing efficiency while ensuring detailed modeling.
Matrice 4D Series can operate with the DJI RC Plus 2 Enterprise remote controller for standalone use while featuring an innovative onboard relay function. With this setup, one drone can fly high as a relay, allowing another drone to operate at a greater distance. The relay drone automatically faces the operating drone, [5] ensuring smooth video transmission without a 4G signal or in obstructed conditions. [19] This capability significantly extends the transmission range, making it ideal for SAR tasks and inspections in mountainous areas.
Public Safety Agencies
Drones elevate public safety agencies by enhancing response times, reducing operational costs, and improving decision-making while ensuring the safety of personnel in critical operations.
Powerline Inspection
Manage electrical grids and plants with drone solutions. Monitor construction, conduct inspections and maintenance with ease.
Geographic Information
Perform topographic survey and generate a variety of data outputs with greater efficiency and reducing operational cost.
Oil and Natural Gas
Revolutionizing the oil and gas industry by enhancing efficiency in management, inspection, and construction, while reducing costs and driving technological innovation.
Renewable Energy
Flexible and mobile, capable of automatically inspecting along flight paths, effectively ensuring personnel safety and increasing power generation revenue.
Roads and Bridges
Drones equipped with high-resolution cameras can meticulously inspect critical bridge components, including decks, piers, and cables.
Water Conservancy
Maritime
Total Weight
55 kg (without aircraft)
The actual product weight may vary due to differences in batch materials and external factors.
Dimensions

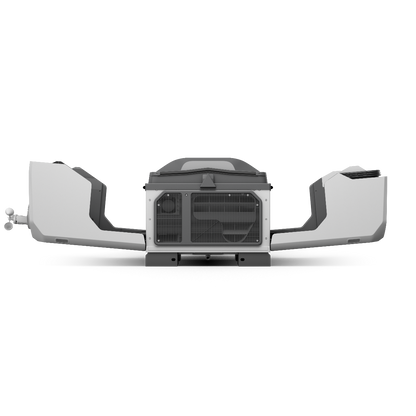

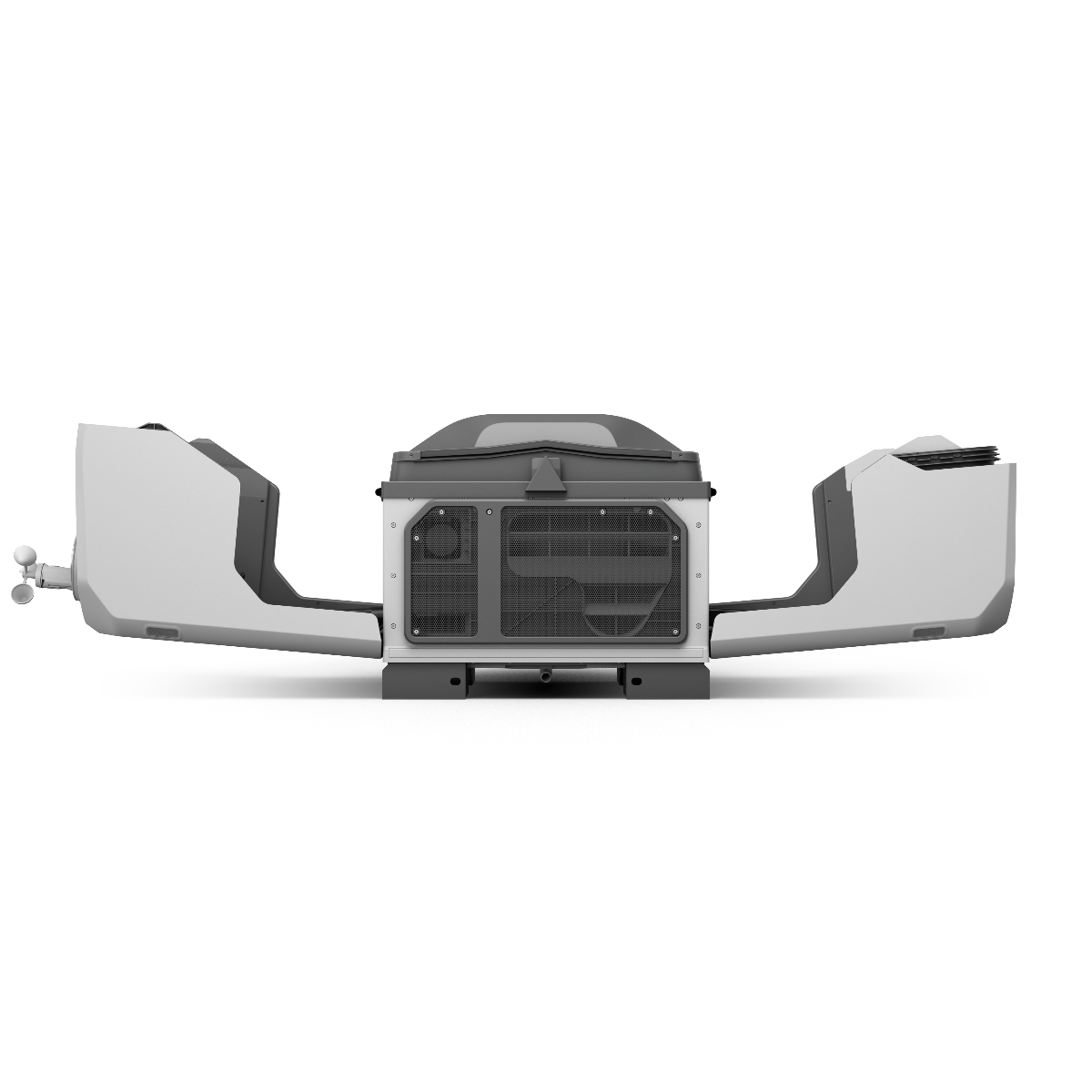

Dock Cover Opened: 1760×745×485 mm (L×W×H)
Dock Cover Closed: 640×745×770 mm (L×W×H)
All data includes the RTK module width (160 mm), wind speed gauge height (145 mm), and mounting base brackets (58 mm).
Input Voltage
100-240 V (AC), 50/60 Hz
Input Power
Max 800 W
Operating Temperature
-30° to 50° C (-22° to 122° F)
Ingress Protection Rating
IP56
Number of Drones Accommodated
1
Max Allowable Landing Wind Speed
12 m/s
Max Operating Altitude
4500 m
Receiving Frequency of RTK Base Station Satellite
Simultaneously receive:
GPS: L1 C/A, L2, L5
BeiDou: B1l, B2l, B3l, B2a, B2b, B1C
GLONASS: F1, F2
Galileo: E1, E5a, E5b, E6
QZSS: L1, L2, L5
Positioning Accuracy of RTK Base Station
Horizontal: 1 cm + 1 ppm (RMS)
Vertical: 2 cm + 1 ppm (RMS)
Weight
1850 g
This value includes the weight of the battery, propellers, and a microSD card, but does not include third-party payloads. The actual weight may vary due to differences in batch materials and external factors.
Max Takeoff Weight
2090 g
Dimensions
377.7×416.2×212.5 mm (L×W×H, without propellers)
Wheelbase
Diagonal Wheelbase: 498.5 mm
Front Motor Left-Right Wheelbase: 383.0 mm
Rear Motor Left-Right Wheelbase: 343.0 mm
Front-Rear Wheelbase: 341.6 mm
Max Ascent Speed
6 m/s (Normal Mode)
10 m/s (Sport mode)
Max Descent Speed
6 m/s (Normal Mode)
8 m/s (Sport mode)
Max Horizontal Speed (at sea level, no wind)
Normal Mode, With Obstacle Sensing Enabled: 15 m/s flying forward, 12 m/s flying backward, 10 m/s flying sideways
Sport Mode: 21 m/s flying forward, 19 m/s flying backward, 15 m/s flying sideways
When used with DJI Dock, only Normal mode is supported.
Max Wind Speed Resistance
During Operation: 12 m/s
During Takeoff/Landing: 12 m/s
Max Takeoff Altitude
6500 m
Max Flight Time
54 minutes
Measured in a controlled test environment.
Max Hovering Time
47 minutes
Max Operating Radius
10 km
Max Flight Distance
43 km
Measured with Matrice 4D/4TD flying at a constant speed of 16 m/s in a windless environment at 20 meters above sea level and from 100% battery level until 0%.
Max Pitch Angle
25° (Normal Mode)
30° (Sport Mode)
Max Angular Velocity
200°/s
Global Navigation Satellite System
GPS + BeiDou + Galileo + QZSS + GLONASS (QZSS and GLONASS are supported only when the RTK module is enabled.)
Hovering Accuracy Range (windless or breezy)
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)
Horizontal:
±0.3 m (with vision positioning)
±0.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)
Operating Temperature
-20° to 50° C (-4° to 122° F)
Ingress Protection Rating
IP55
Motor Model
2611
Propeller Model
1364F foldable low-noise anti-ice propellers
RTK Module
Integrated on the aircraft
Beacon
Integrated on the aircraft
