Images may show optional equipment or manufacturer software bundles. Confirm DRT package contents and license inclusion in the selected configuration.

LiDAR scanners

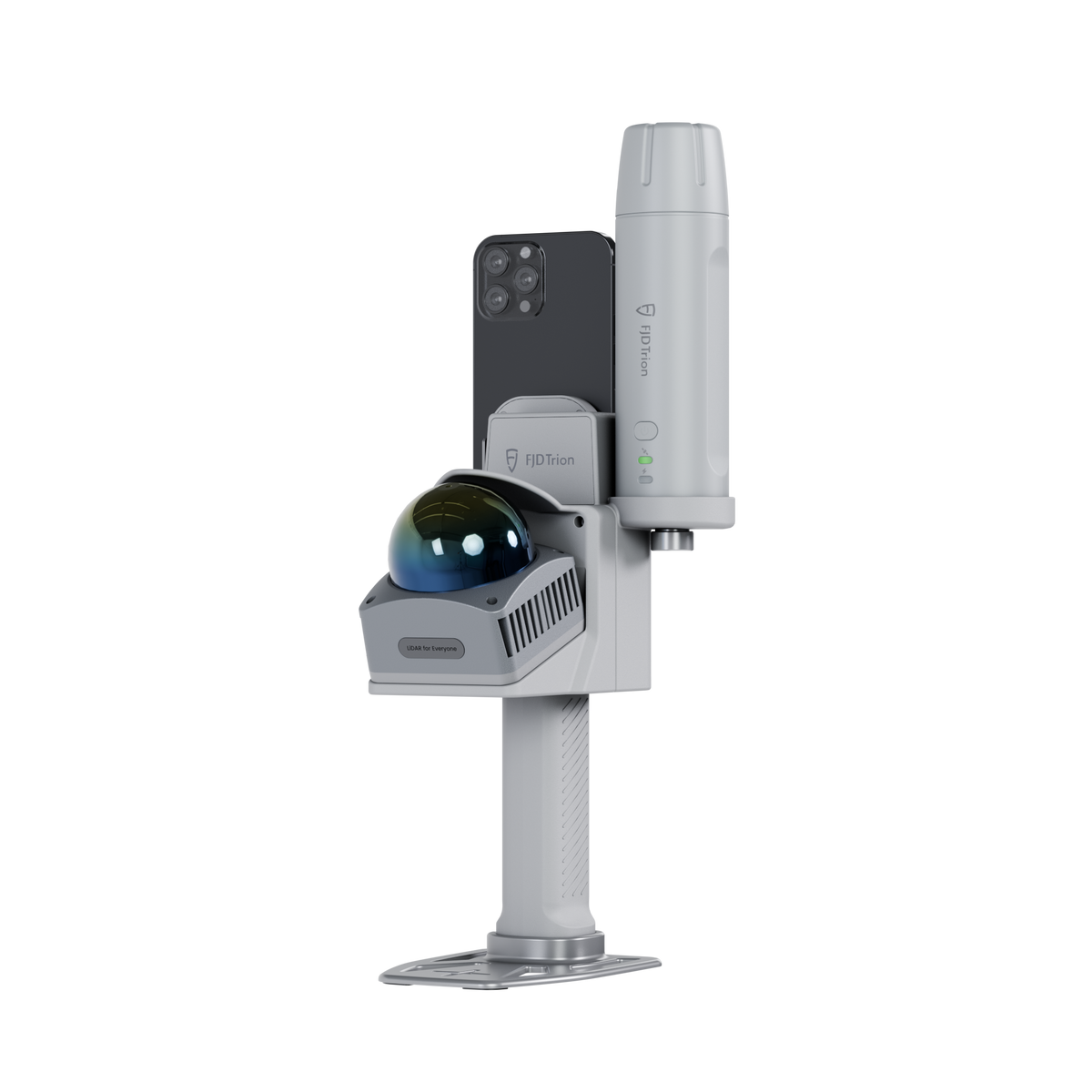

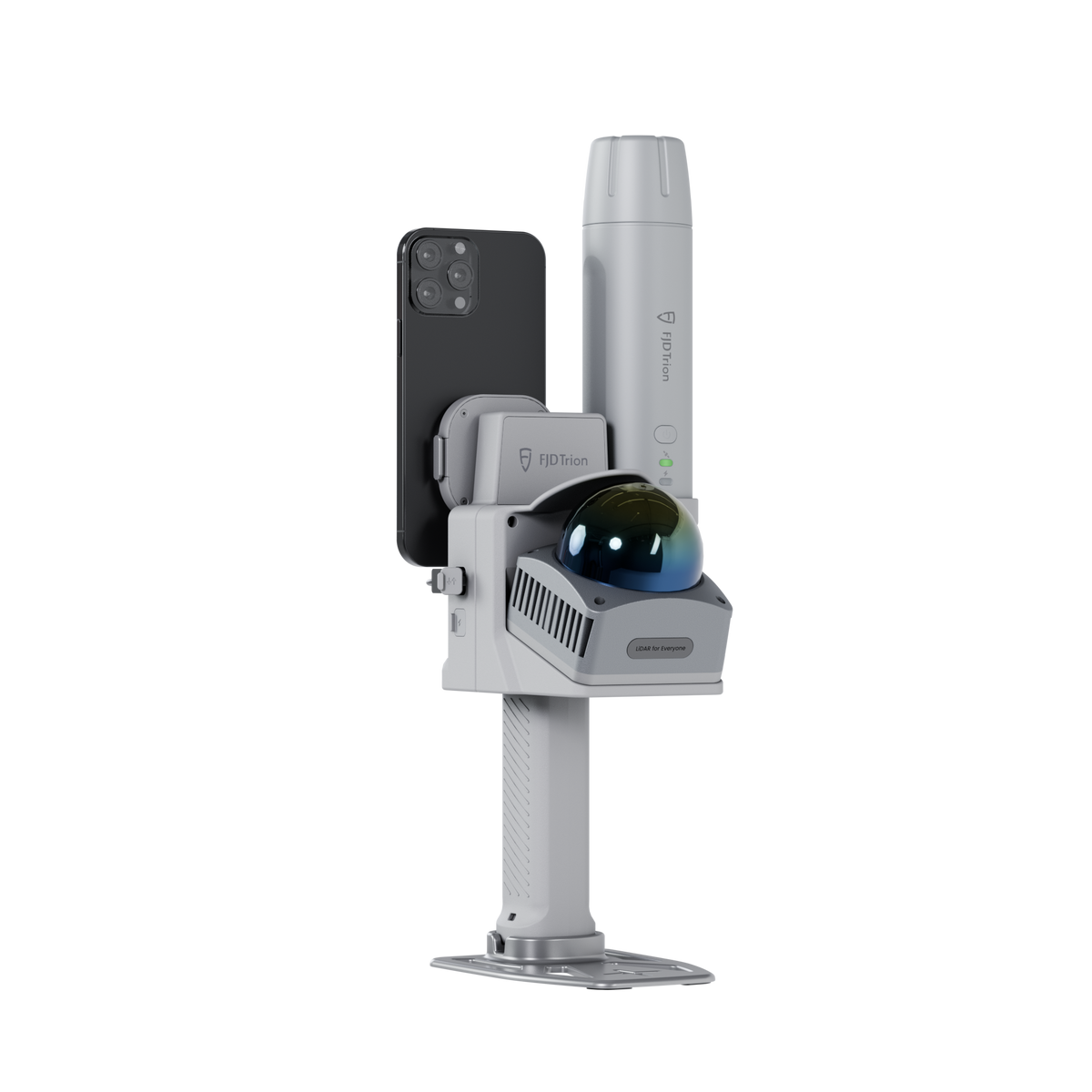

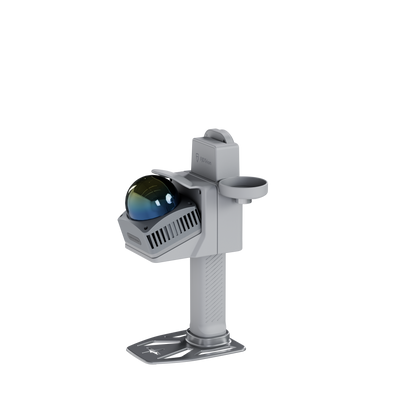

FJD Trion V4e Go

Phone-based indoor and outdoor 3D capture. Review compatible phones, positioning options and software at DRT.

2-year warranty

Configurations & availability

  • V4e GoContact DRT for availability
    $4,499.00 USD

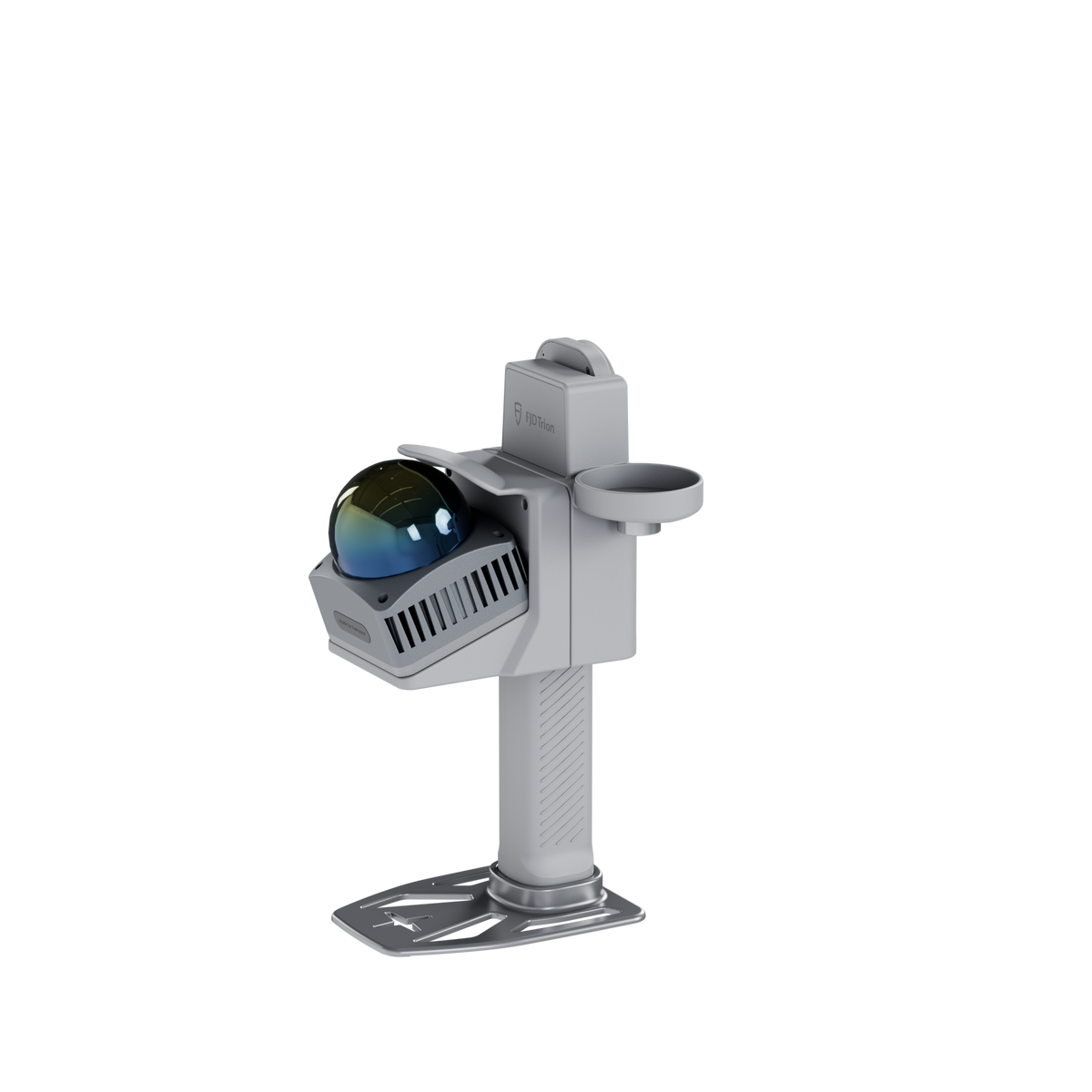

  • V4e Go without GNSS ReceiverContact DRT for availability
    $3,499.00 USD
From $3,499.00 USD

Check current availability

Request the exact package, current availability and license options for your project.

Request a configuration ↗

Overview

An adaptable scan-to-result workflow.

FJD Trion V4e Go — manufacturer workflow illustration
FJD Trion V4e Go — manufacturer workflow illustration

Manufacturer illustrations may show optional equipment, software or a particular edition. The selected package determines what is included.

01

Mount and capture

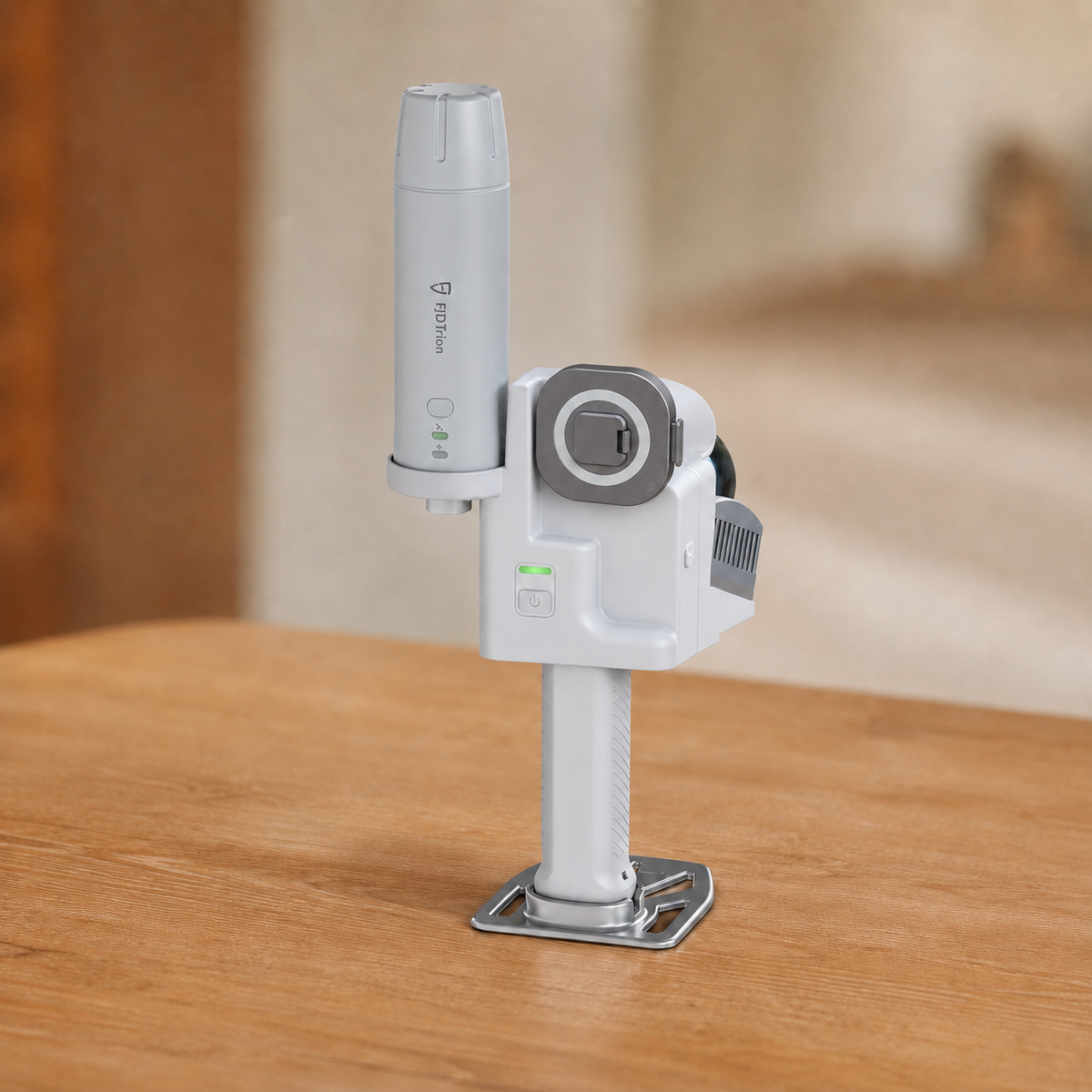

A magnetic phone mount simplifies setup.

02

Choose the workflow

Creative for floor plans, or Scan and Model Web for broader point-cloud work.

03

Add real-world coordinates

Confirm the GNSS receiver and correction source for outdoor work.

Specifications

Check your setup

Manufacturer lists iPhone 15+, Galaxy S25+, Pixel 10+ and selected OPPO models; scanning and colorization support differ. iPhone e / Air models are excluded. DRT must confirm the exact model.

Software, corrections, mounts and third-party devices are included only when expressly listed in the selected package.

Manufacturer specifications ↗
Point rate
154,600 points/s
Range
50 m at 90%; 25 m at 10% reflectivity
Post-processed accuracy
Relative 1 cm; absolute 3 cm, lab conditions
Main unit
1,025 g
Runtime
5 hours
Phone check
Exact model and OS required

Software & licenses

Choose your software workflow

Review each option and request the licenses you need below. Paid software is not automatically included with hardware.

BEFORE YOU ORDER

Your package. Your workflow.

Manufacturer lists iPhone 15+, Galaxy S25+, Pixel 10+ and selected OPPO models; scanning and colorization support differ. iPhone e / Air models are excluded. DRT must confirm the exact model.

2-year warrantyFind setup guides ↓
What is included in my package?

Use the selected configuration name and included-equipment notes above. Camera, GNSS and mount options differ by kit. Optional accessories and software are separate unless the package explicitly includes them.

Which software do I need?

Match the processing software to the deliverable: point clouds, CAD drawing, terrain or forestry analysis. Review the compatible software below and your existing licenses before adding another.

How should I compare accuracy?

Relative accuracy describes measurements within a scan. Absolute accuracy describes alignment to real-world coordinates and depends on positioning, control, processing and site conditions. Tripod and mobile figures use different test conditions.

Where can I find setup and training?

Open the manuals and downloads for your model below. Check the hardware edition, software version, phone or computer requirements, and complete a sample scan before a production job.

Open setup resources →

Downloads & support

Downloads & support

Check the model and document edition before use. A downloadable manual or installer does not include a software license.

All Trion resources →

Official support center

Choose your exact model for current firmware, apps and additional documentation.

DRT PROJECT SUPPORT

Let’s configure your Trion workflow.

Tell DRT what you use, what you need to capture and which deliverables you need. We will review the equipment and software together.

Check your setup

Manufacturer lists iPhone 15+, Galaxy S25+, Pixel 10+ and selected OPPO models; scanning and colorization support differ. iPhone e / Air models are excluded. DRT must confirm the exact model.

These details help DRT review your configuration. Completing this form is not a compatibility approval.

Software to include in my quote

Review each option and request the licenses you need below. Paid software is not automatically included with hardware.
