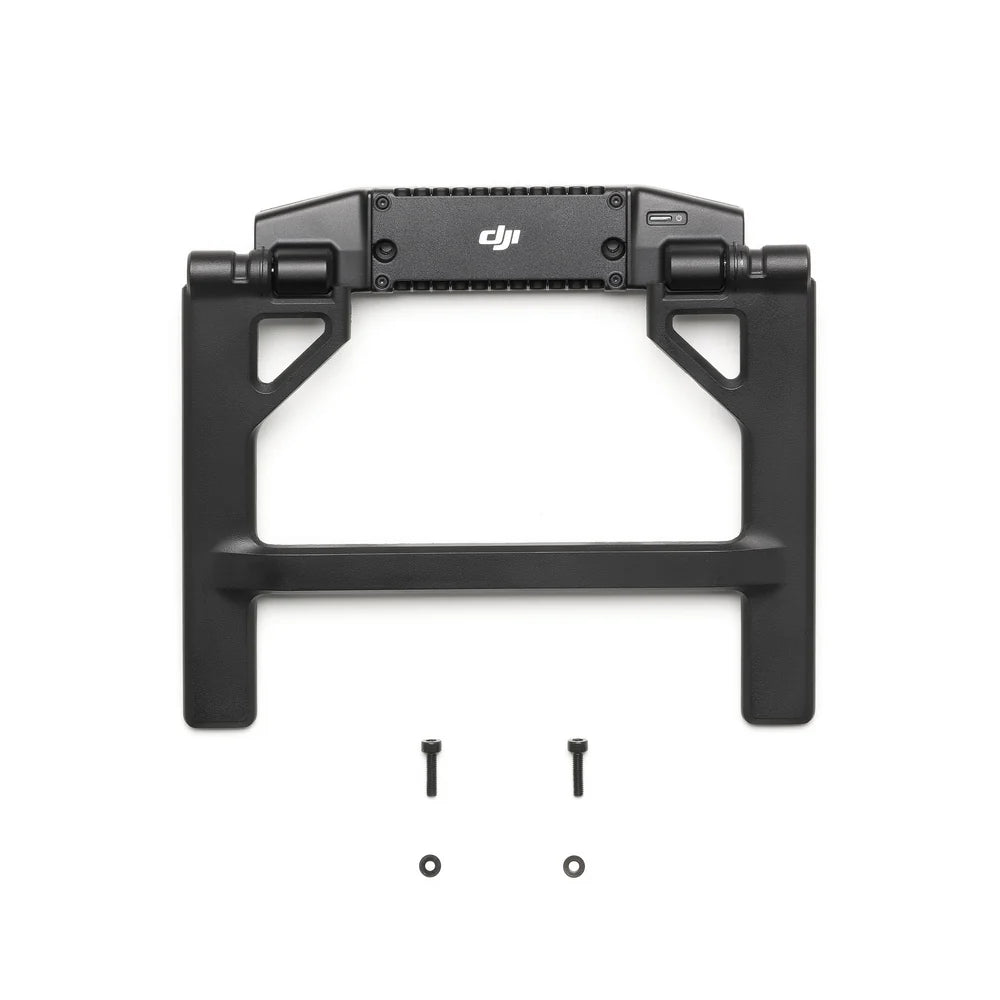

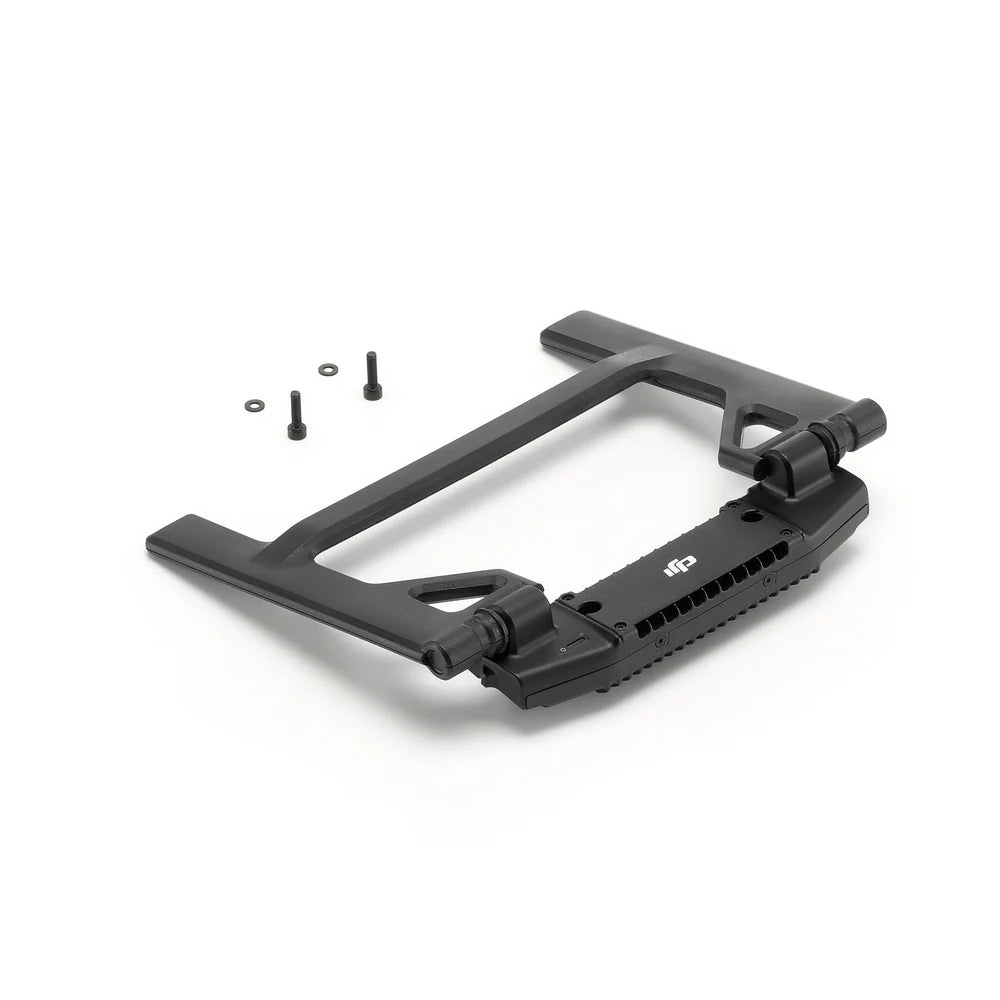

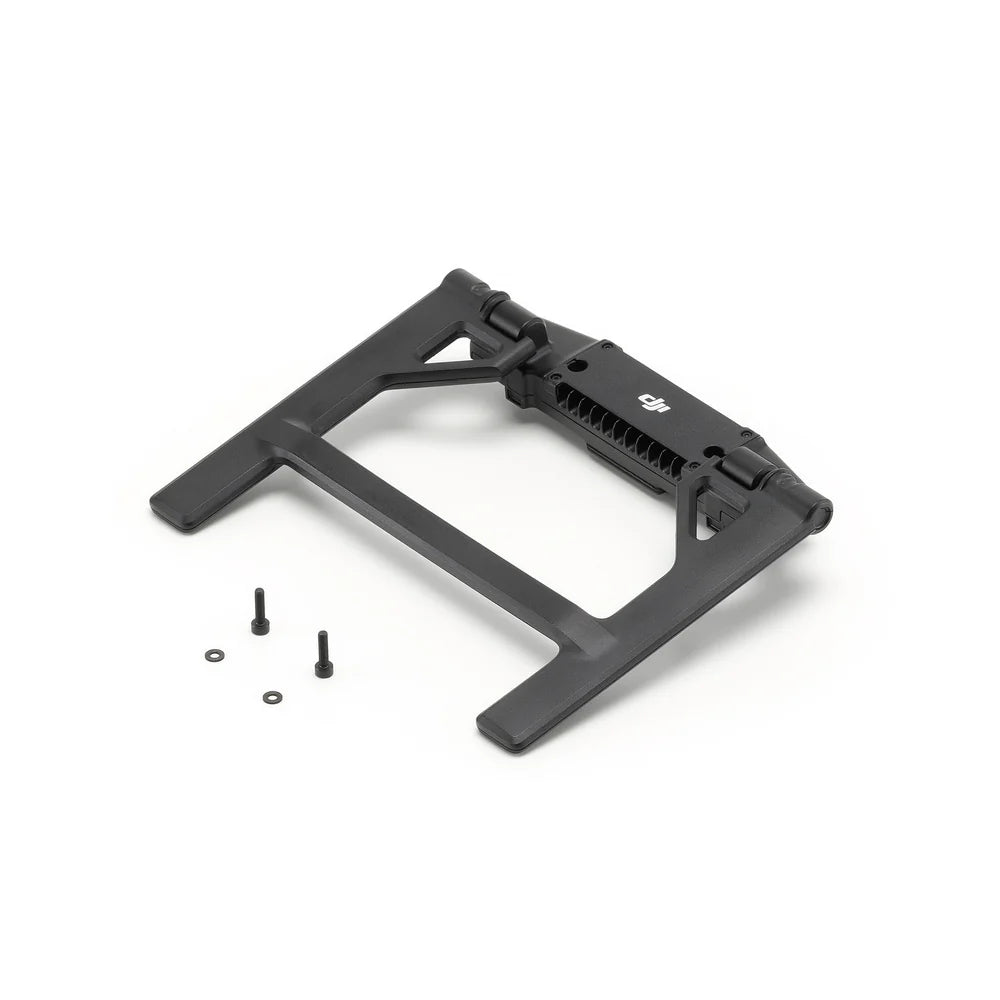

DJI RC Plus 2 Sub2G SDR Module

CP.EN.00000678.01

In stock, ready to ship
$169.00 USD
Shipping calculated at checkout.

Free shipping over $599.00

Money Back Guarantee

Pairs well with
⚠ Important Compatibility Notice
This module is designed for the DJI RC Plus 2 Enterprise Enhanced remote controller and DJI Matrice 400.
  • Compatible Remote Controller: DJI RC Plus 2 Enterprise Enhanced
  • Compatible Aircraft: DJI Matrice 400
  • Not compatible with the standard DJI RC Plus 2 Enterprise remote controller.
  • DJI Matrice 4 Series and Matrice 4D Series aircraft do not support sub2G communication, even when paired with an RC Plus 2 Enterprise Enhanced controller.
Please verify your remote controller model and aircraft compatibility before ordering.
DJI Enterprise Transmission Accessory

DJI RC Plus 2 sub2G SDR Module

Expand the communication capabilities of the DJI RC Plus 2 Enterprise Enhanced with supported sub-2GHz frequency bands for longer-range and more interference-resistant enterprise operations.

Enhanced Communication for Matrice 400

The DJI RC Plus 2 sub2G SDR Module is designed specifically for the DJI RC Plus 2 Enterprise Enhanced. Once installed on a compatible system, the module enables supported sub2G communication frequencies, helping improve transmission range and anti-interference performance between the remote controller and the aircraft.

📡
sub2G Communication
Adds supported sub-2GHz communication capability to the DJI RC Plus 2 Enterprise Enhanced.
↔️
Extended Transmission
Lower-frequency communication can improve effective transmission range in supported operating environments.
🛡️
Improved Interference Resistance
Designed to provide a more robust communication link for demanding enterprise missions.

Compatibility

Compatible Aircraft
DJI Matrice 400
Required Remote Controller
DJI RC Plus 2 Enterprise Enhanced
Not Compatible:
This module cannot be installed on the standard DJI RC Plus 2 Enterprise remote controller. The compatible Enterprise Enhanced version has the required hardware interface for the sub2G SDR Module.

RC Plus 2: Standard vs. Enhanced

Feature RC Plus 2 Enterprise RC Plus 2 Enterprise Enhanced
sub2G SDR Module Support ❌ No ✅ Yes
sub2G Communication ❌ No ✅ Supported with compatible module and aircraft
Recommended System Standard compatible DJI Enterprise systems DJI Matrice 400

Using RC Plus 2 Enterprise Enhanced with Matrice 4 / Matrice 4D

The DJI RC Plus 2 Enterprise Enhanced can support pairing with certain Matrice 4 Series and Matrice 4D Series aircraft after the required firmware/software update. However, these aircraft do not support sub2G communication. Therefore, purchasing this module will not add sub2G transmission capability to those aircraft.

Specifications

FCC Frequency
902–928 MHz: < 30 dBm
MIC Frequency
902–928 MHz: < 16 dBm
SRRC Frequency
1.430–1.444 GHz: < 35 dBm

In the Box

✓ DJI RC Plus 2 sub2G SDR Module × 1
✓ Screw × 2
✓ Screw Washer × 2
✓ Screwdriver × 1

Frequency & Regulatory Notice

Available operating frequencies vary by country and region. Please comply with all applicable local laws and regulations.

sub2G frequency-band communication may only be enabled where the appropriate radio licenses and regulatory authorization are available.

Before You Order
Please confirm that you have a DJI RC Plus 2 Enterprise Enhanced and a DJI Matrice 400. If your controller is the standard DJI RC Plus 2 Enterprise version and does not have the dedicated module interface, this accessory will not fit or function.
