  • DJI Agras T100
    1 2

    DJI

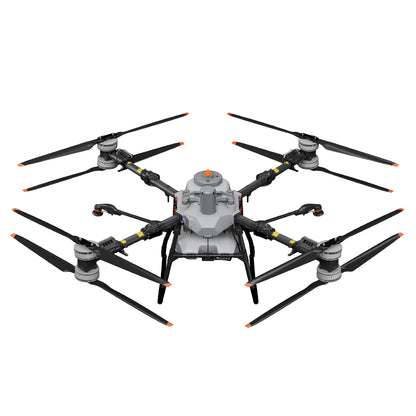

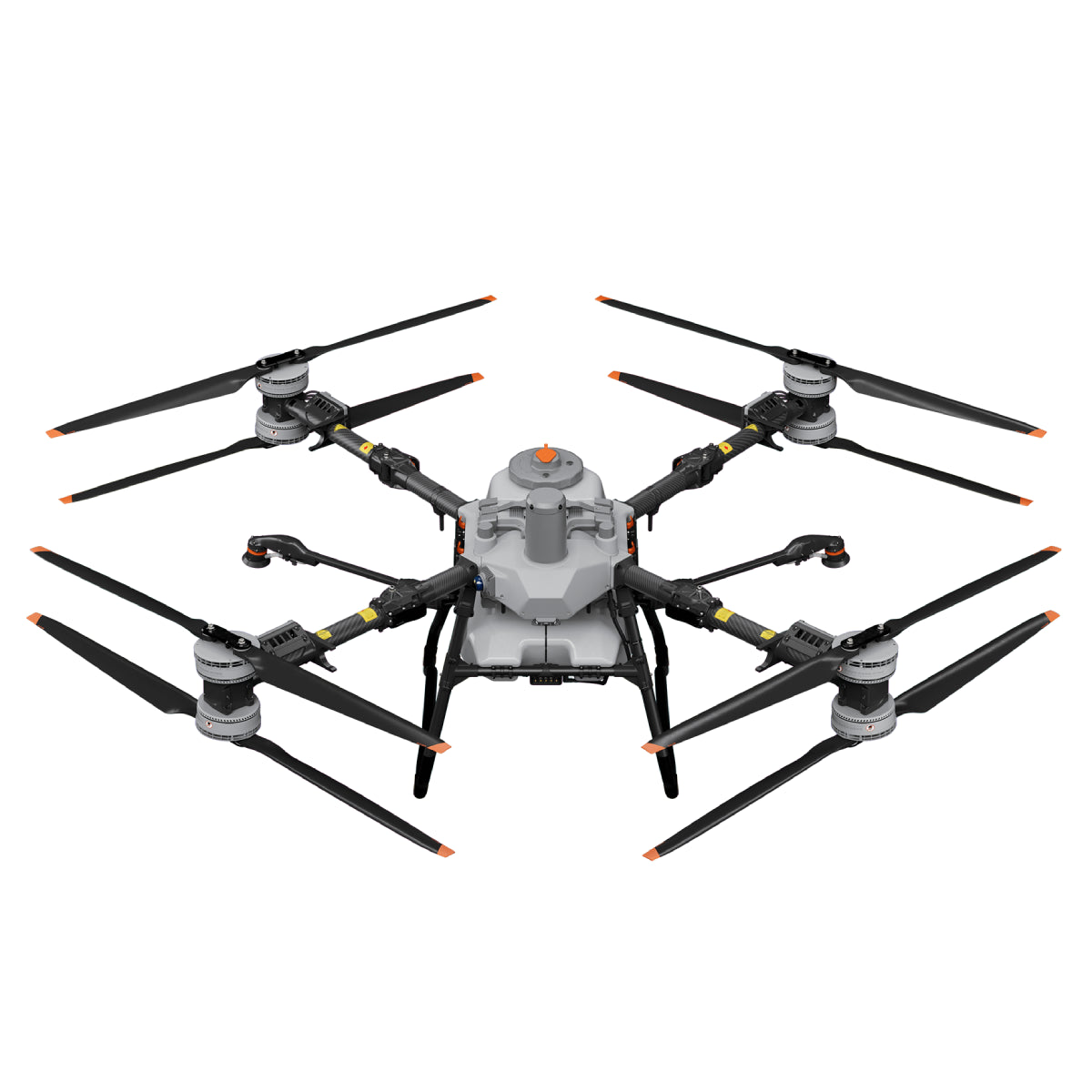

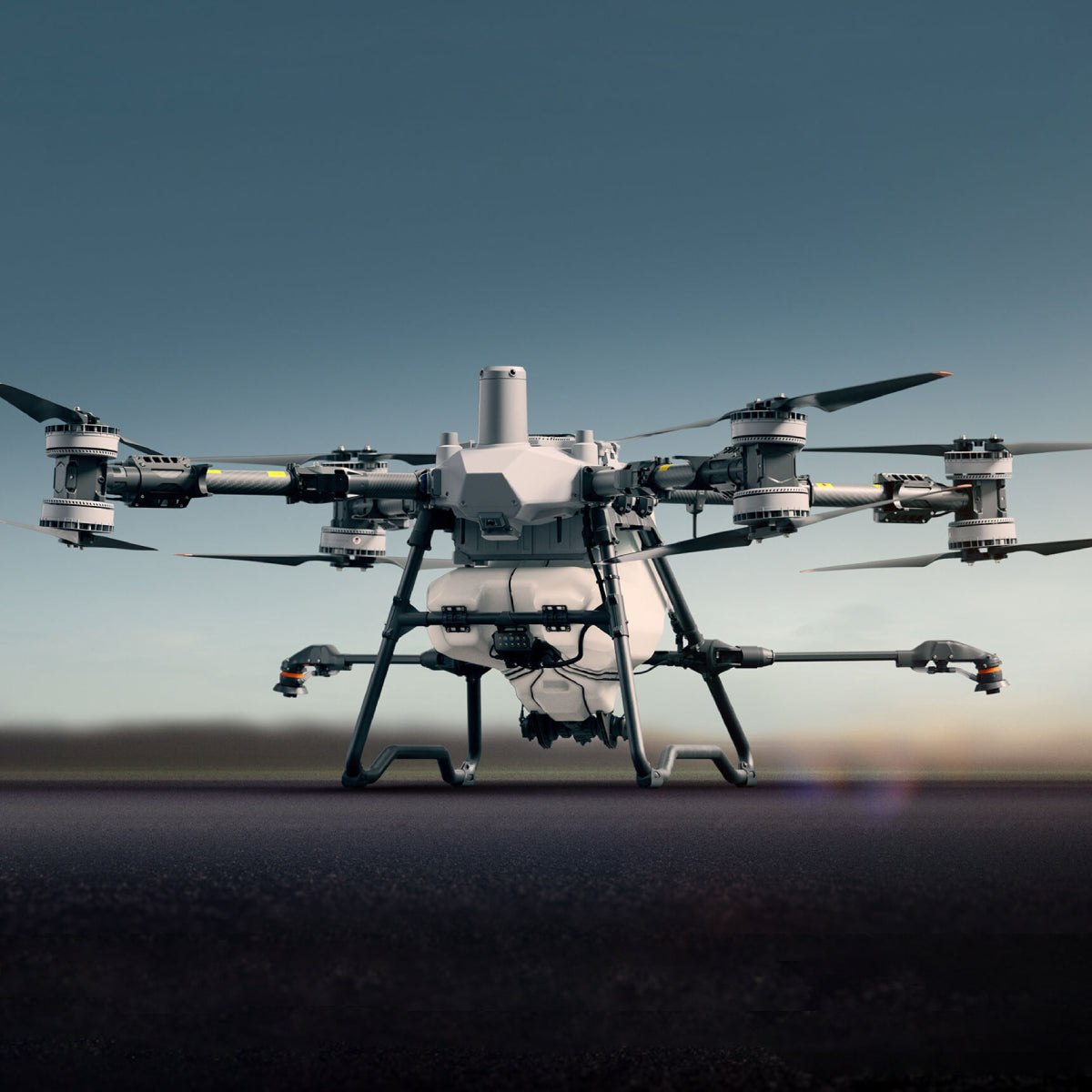

    DJI Agras T100 Spraying Drone

    DJI Agras T100 Spraying Drone

    Restocking
    Estimated Restock Time: 60 days

    SKU: DJI Agras T100 Spraying Drone

    $25,456.00 USD

    In the box

    • T100 Aircraft (with Spray Tank Kit) x 1
    • T100 Remote Controller x 1
    • T100 Battery Cooling Station x 1
    View full details

    DJI AGRAS T100 vs T50 vs T25

    Introduction

    The DJI Agras T100 is a next-generation agricultural drone designed to revolutionize large-scale farm operations. This guide breaks down the key features of the T100 and compares it with the T25 and T50 models to help you make an informed decision.

    Flight Performance & Efficiency

    Feature T100 T50 T25
    Empty Weight 77 kg (spraying w/ 4 nozzles) 39.5 kg 21.2 kg
    Max Takeoff Weight 177 kg (spraying) 101 kg 54 kg
    Max Payload (Spraying) 100 kg 40 kg 20 kg
    Max Payload (Spreading) 100 kg 50 kg 25 kg
    Diagonal Wheelbase 2330 mm 2120 mm 1914 mm
    Dimensions (Unfolded) 3220 × 3224 × 975 mm 2800 × 2342 × 790 mm 2670 × 2580 × 750 mm
    Flight Radius 2 km 2 km 2 km
    Flight Time (No Payload) ~23 min ~20 min ~20 min
    Flight Time (Full Payload) ~9–13 min ~10–15 min ~10–15 min
    Max Operating Speed 10 m/s (spraying mode) 7 m/s 7 m/s
    Max Wind Resistance <6 m/s <8 m/s <8 m/s
    Hovering Accuracy (RTK) ±10 cm (H/V) ±10 cm (H/V) ±10 cm (H/V)
    Propeller Size 62 in × 8 pairs 54 in × 4 pairs 54 in × 4 pairs
    Motor Specs 155 × 16 mm, KV 60 N/A N/A
    Max Efficiency (Spraying) ~22 ha/hr ~16 ha/hr ~12 ha/hr

    Spraying & Spreading Capabilities

    Feature T100 T50 T25
    Spray Tank Volume 100 L 40 L 20 L
    Spraying Payload 100 kg 40 kg 20 kg
    Sprinkler Options 2 (standard) / 4 (optional) 2 (standard) / 4 (optional) 2 (standard) / 4 (optional)
    Droplet Size 50–500 μm 50–500 μm 50–500 μm
    Effective Spray Width 5–11 m 5–10 m 4–7 m
    Max Flow Rate 30 L/min (2 nozzles) / 40 L/min (4 nozzles) 16 L/min (2) / 24 L/min (4) 16 L/min (2) / 24 L/min (4)
    Pump Type Impeller Pump (Magnetic Drive) x2 Impeller Pump x2 Impeller Pump x2
    Spray Tank Material HDPE HDPE HDPE
    Spreading Tank Volume 150 L 75 L 35 L
    Spreading Payload 100 kg 50 kg 25 kg
    Max Discharge Rate 400 kg/min 108 kg/min 108 kg/min
    Spreader Type Centrifugal Disc + Screw Feeder Centrifugal Disc Centrifugal Disc
    Compatible Granule Size 0.5–10 mm 0.5–10 mm 0.5–10 mm
    Effective Spread Width 3–10 m ~8 m ~5–8 m

    Heavy-Lifting Mode (T100 Only)

    Feature Agras T25 Agras T50 Agras T100
    Lifting Mode Not Available Not Available ✅ Included (Winch System)
    Max Lifting Capacity — — Up to 100 kg (recommended ≤ 85 kg for winch ops)
    Lifting Cable Length — — 10 m (standard), 10–15 m recommended
    Applications — — • Remote supply transport • Irrigation equipment delivery • Firefighting (water bucket deployment)

    Power and Battery Efficiency

    Feature Agras T25 Agras T50 Agras T100
    Battery Model DB800 DB1560 DB2160
    Battery Capacity 25,000 mAh 30,000 mAh 41,000 mAh
    Nominal Voltage 52.22 V 51.8 V 52 V
    Energy (Approx.) ~1300 Wh ~1550 Wh ~2130 Wh
    Battery Weight ~9.5 kg ~13.2 kg 14.7 ± 0.3 kg
    Battery Type Li-ion Li-ion Li-ion
    Swappable Battery ✅ Yes ✅ Yes ✅ Yes (Supports Dual Battery for Lifting)
    Charging System C8000 + D9000i Generator D12000iE Generator D12000iE Generator
    Max Charging Power 7200 W 12,000 W 12,000 W
    Charging Time ~9–12 min ~9–12 min ~9–12 min
    Flight Time (No Payload) ~20 min ~20 min ~23 min
    Flight Time (Full Payload) ~10–15 min ~10–15 min ~9–13 min

    Autonomy & Obstacle Avoidance

    Feature DJI T25 DJI T50 DJI T100
    360° Obstacle Sensing ✅ Dual Radar + Binocular Vision ✅ Dual Radar + Binocular Vision ✅ Dual Radar + Binocular Vision (Enhanced)
    Sensing Range Up to 30 m Up to 30 m Up to 60 m (Lidar-enhanced)
    Obstacle Detection Detects front/rear obstacles Detects front/rear obstacles Detects fine objects (e.g., wires, branches)
    Terrain Following ✅ Yes ✅ Yes ✅ Yes
    Lidar Scanner ❌ No ❌ No ✅ Built-in spinning Lidar (for 3D mapping)
    AR Display System ❌ Not supported ❌ Not supported ✅ Live 3D visualization via Goggles or RC screen
    Advanced Visualization ❌ No ❌ No ✅ Shows path, landing points, hazard overlays
    Millimeter Wave Radar (EIRP) ❌ No ✅ < 20 dBm ✅ < 20 dBm
    Laser Radar FOV — — Vertical 272°, Horizontal 60°
    Front Radar FOV 360° H / ±45° V 360° H / ±45° V 360° H / ±45° V
    Rear/Down Radar FOV ±45° / ±22.5° ±45° / ±22.5° ±45° / ±22.5°
    Quad Vision System ✅ 360° H / 180° V ✅ ✅
    FPV Camera FOV ±86° H / 108° V ✅ ✅
    Safe Obstacle Avoidance Speed ≤ 7 m/s ≤ 10 m/s ≤ 13.8 m/s
    Effective Avoidance Height ≥ 1.0 m ≥ 1.2 m ≥ 1.5 m
    Operating Environment Lighted, clear surroundings Same Same
    Operating Temperature 0 °C to 40 °C 0 °C to 40 °C 0 °C to 40 °C

    Remote Controller Experience

    Feature DJI T25 DJI T50 DJI T100
    Model RM700B RM700B TKPL 2 (RC Plus 2)
    Screen Size 7.02″ LCD 7.02″ LCD 7.00″ LCD
    Resolution 1920 × 1200 1920 × 1200 1920 × 1200
    Brightness 1200 cd/m² 1200 cd/m² 1400 cd/m²
    Operating Temperature -20°C to 50°C -20°C to 50°C -20°C to 50°C
    Storage Temperature -30°C to 45°C (varies by time) Same Same
    Video Transmission O4 (~7 km FCC) O4 (~7 km FCC) O4 (~7 km FCC)
    Wi-Fi Protocol Wi-Fi 6 Wi-Fi 6 —
    Bluetooth Bluetooth 5.1 Bluetooth 5.1 —
    GNSS GPS + Galileo + BeiDou Same Same
    4G Connectivity ✅ Drone & Controller ✅ Drone & Controller ✅ Drone & Controller
    FPV Camera Support Standard FPV Standard FPV HD FPV with gimbal + zoom
    Autonomous Functions One-tap takeoff & mission Same Same
    Mission Apps DJI Agras / Pilot 2 Same Same
    Internal Battery Runtime 3h 18m 3h 18m 3.8 hours
    External Battery Runtime 2h 42m 2h 42m 3.2 hours
    Charging Type USB-C, 65W (20V) Same Same
    Charging Time ~2 hours (internal or combo) Same Same
    Charging Temperature 5°C to 40°C Same Same

    Handling & Transport Considerations

    Feature DJI T25 DJI T50 DJI T100
    Folding Mechanism ✅ Foldable arms & props ✅ Foldable arms & props ✅ Foldable arms & props
    One-Person Setup ✅ Easy ✅ Moderate effort 🚫 Two-person recommended
    Transport Mode Dimensions 1105 × 1265 × 975 mm 1125 × 1100 × 685 mm 1105 × 1265 × 975 mm
    Unfolded Dimensions 2670 × 2580 × 750 mm 2800 × 2342 × 790 mm 3220 × 3224 × 975 mm
    Empty Aircraft Weight ~21.2 kg ~39.5 kg ~77 kg (spraying config)
    Max Takeoff Weight 54 kg 101 kg 177 kg
    Vehicle Transport ✅ Fits in pickup bed ✅ Pickup/SUV 🚚 Truck or trailer recommended
    Lift Handles / Design ✅ Integrated grips ✅ Integrated grips ✅ Dual-side lifting zones
    Setup Time <5 minutes ~5–8 minutes 8–10 minutes (2 people)
    Field Deployment Suitability Excellent for narrow areas, orchards Good for medium fields Ideal for large, open fields

    Smart Ecosystem & DJI SmartFarm

    Feature DJI T25 DJI T50 DJI T100
    DJI SmartFarm Integration ✅ Supported ✅ Supported ✅ Supported
    Flight Data Sync ✅ Yes ✅ Yes ✅ Yes
    Spray Reports ✅ Generates flight/spray reports ✅ Generates flight/spray reports ✅ Generates flight/spray reports
    Crop Management Tools ✅ Cloud access to SmartFarm features ✅ Cloud access to SmartFarm features ✅ Cloud access + enhanced AI compatibility
    AI & Precision Ag Support ❌ Not included ❌ Not included ✅ Ready for DJI AI features & base station links
    Target User Benefit Small-scale record keeping Mid-scale crop analytics Advanced analytics, AI diagnostics, optimization

    Choosing the Right Drone

    Model Best For Key Strengths Ideal User
    DJI T25 Small-scale farms, orchards, research plots ✅ Lightweight & compact✅ Fast setup✅ Solo operation capable Growers managing multiple small fields, demo sites, universities, or tight terrain applications
    DJI T50 Mid-sized operations, contract sprayers, co-ops ✅ Balanced capacity vs. portability✅ Higher efficiency✅ Easy to transport Farms with medium-sized acreage, or service providers covering various regions
    DJI T100 Large-scale commercial farms, agricultural service providers ✅ Maximum spray & spread payload✅ AI-ready + Lidar✅ Industrial-grade durability Professional users needing precision, heavy-duty spraying, or future expansion into AI, mapping, and lifting tasks

    The DJI Agras T100 offers unmatched spraying capacity, speed, and adjustability—ideal for high-demand agricultural operations needing speed and precision. The T50 balances size and capacity, while the T25 remains the go-to for compact and cost-sensitive jobs.
