LiDAR scanners

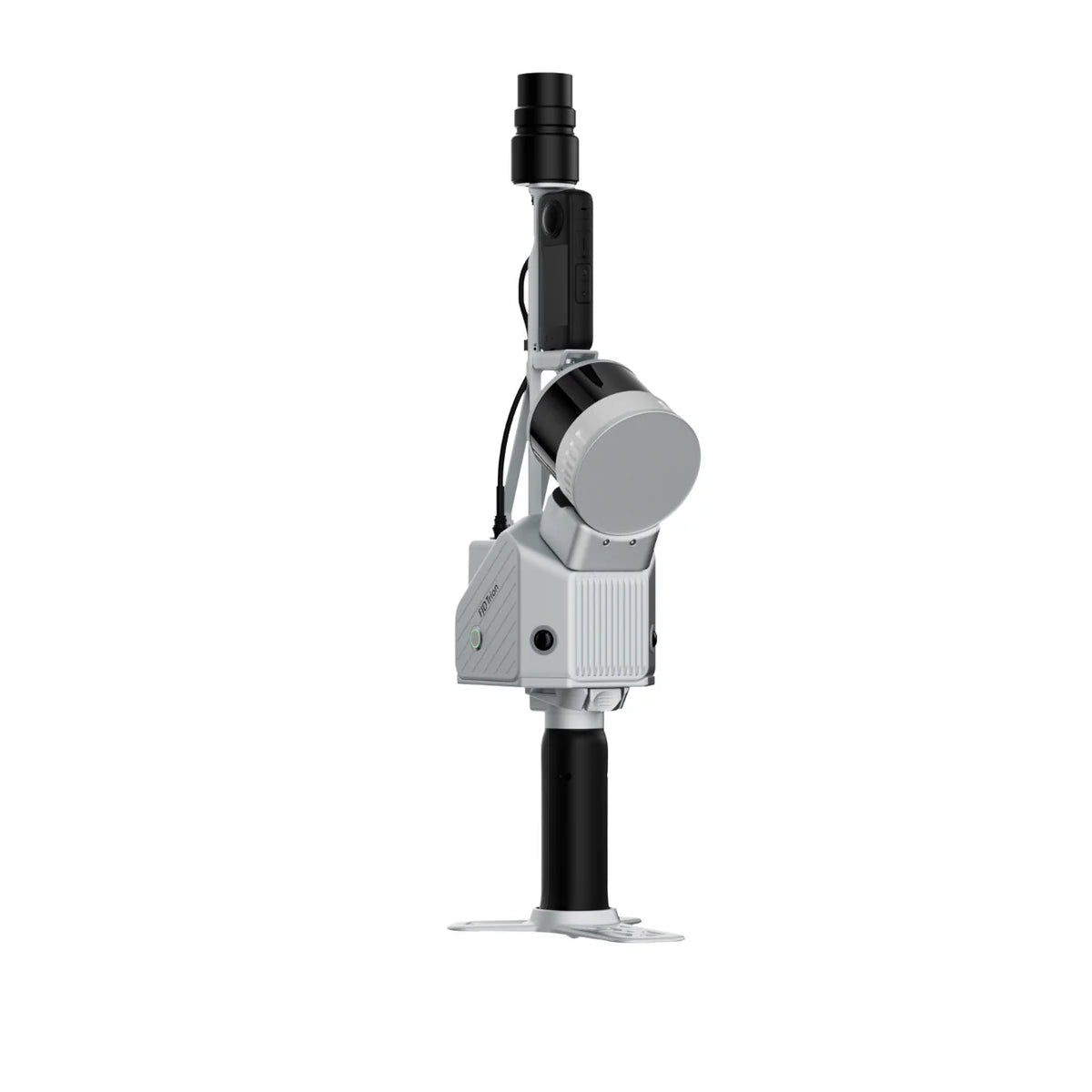

FJD Trion S2 Series LiDAR Scanner

Compare S2, S2 Pro and S2 Max for mobile 3D capture. Review supported mounts, software and package contents at DRT.

2-year warranty

Available to order

$21,000.00 USD

USD. Taxes and shipping are calculated at checkout.

Included configuration

S2 Scanner + X3 camera

Add compatible accessories

Optional items are separate cart lines. Check the device-specific compatibility notes before selecting.

View details ↗
View details ↗
Selected subtotal$21,000.00 USD

Overview

Choose your range. Expand your capture platform.

01

Scale the scan

Choose 16-channel S2 or 32-channel Pro / Max.

02

Georeference the project

RTK and PPK workflows connect captured geometry to project coordinates.

03

Adapt the mount

Ask DRT about vest, vehicle, drone or robot mounting.

Specifications

Check your setup

Drone integrations require aircraft-specific mounts, payload review and operating approval. Select the exact S2 edition and camera package.

Software, corrections, mounts and third-party devices are included only when expressly listed in the selected package.

Manufacturer specifications ↗
Range at 80% reflectivity
S2 / Pro: 120 m; Max: 300 m
Range at 10% reflectivity
80 m across the series
Point rate
S2: 320,000/s; Pro / Max: 640,000/s
Post-processing accuracy
Relative ≤1 cm; absolute 3 cm, manufacturer conditions
Main unit
1.8 kg excluding battery, external camera and GNSS module
Exports
LAS, PLY, PTS, E57

Software & licenses

Choose your software workflow

Review each option and request the licenses you need below. Paid software is not automatically included with hardware.

Complete your field kit.

BEFORE YOU ORDER

Your package. Your workflow.

Drone integrations require aircraft-specific mounts, payload review and operating approval. Select the exact S2 edition and camera package.

2-year warrantyFind setup guides ↓
What is included in my package?

Use the selected configuration name and included-equipment notes above. Camera, GNSS and mount options differ by kit. Optional accessories and software are separate unless the package explicitly includes them.

Which software do I need?

Match the processing software to the deliverable: point clouds, CAD drawing, terrain or forestry analysis. Review the compatible software below and your existing licenses before adding another.

How should I compare accuracy?

Relative accuracy describes measurements within a scan. Absolute accuracy describes alignment to real-world coordinates and depends on positioning, control, processing and site conditions. Tripod and mobile figures use different test conditions.

Where can I find setup and training?

Open the manuals and downloads for your model below. Check the hardware edition, software version, phone or computer requirements, and complete a sample scan before a production job.

Open setup resources →

Downloads & support

Downloads & support

Check the model and document edition before use. A downloadable manual or installer does not include a software license.

All Trion resources →

S2 quick start guide — September 2025

Check the edition against your hardware and software version.

Official support center

Choose your exact model for current firmware, apps and additional documentation.
