DJI Agras T100 Spraying Tank (2 Nozzles) - Drones

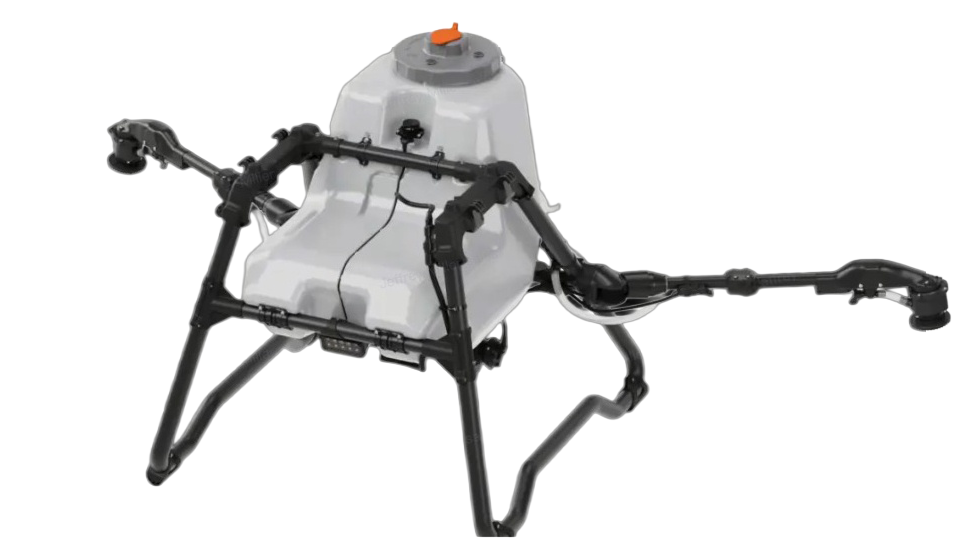

DJI Agras T100 Spraying Tank (2 Nozzles)

T100SprayTank2Nozzle

In stock, ready to ship
$3,638.00 USD
Shipping calculated at checkout.

Free shipping over $599.00

Money Back Guarantee

Pairs well with

DJI AGRAS T100 vs T50 vs T25

Introduction

The DJI Agras T100 is a next-generation agricultural drone designed to revolutionize large-scale farm operations. This guide breaks down the key features of the T100 and compares it with the T25 and T50 models to help you make an informed decision.

Flight Performance & Efficiency

Feature T100 T50 T25
Empty Weight 77 kg (spraying w/ 4 nozzles) 39.5 kg 21.2 kg
Max Takeoff Weight 177 kg (spraying) 101 kg 54 kg
Max Payload (Spraying) 100 kg 40 kg 20 kg
Max Payload (Spreading) 100 kg 50 kg 25 kg
Diagonal Wheelbase 2330 mm 2120 mm 1914 mm
Dimensions (Unfolded) 3220 3224 975 mm 2800 2342 790 mm 2670 2580 750 mm
Flight Radius 2 km 2 km 2 km
Flight Time (No Payload) ~23 min ~20 min ~20 min
Flight Time (Full Payload) ~913 min ~1015 min ~1015 min
Max Operating Speed 10 m/s (spraying mode) 7 m/s 7 m/s
Max Wind Resistance <6 m/s <8 m/s <8 m/s
Hovering Accuracy (RTK) 10 cm (H/V) 10 cm (H/V) 10 cm (H/V)
Propeller Size 62 in 8 pairs 54 in 4 pairs 54 in 4 pairs
Motor Specs 155 16 mm, KV 60 N/A N/A
Max Efficiency (Spraying) ~22 ha/hr ~16 ha/hr ~12 ha/hr

Spraying & Spreading Capabilities

Feature T100 T50 T25
Spray Tank Volume 100 L 40 L 20 L
Spraying Payload 100 kg 40 kg 20 kg
Sprinkler Options 2 (standard) / 4 (optional) 2 (standard) / 4 (optional) 2 (standard) / 4 (optional)
Droplet Size 50500 m 50500 m 50500 m
Effective Spray Width 511 m 510 m 47 m
Max Flow Rate 30 L/min (2 nozzles) / 40 L/min (4 nozzles) 16 L/min (2) / 24 L/min (4) 16 L/min (2) / 24 L/min (4)
Pump Type Impeller Pump (Magnetic Drive) x2 Impeller Pump x2 Impeller Pump x2
Spray Tank Material HDPE HDPE HDPE
Spreading Tank Volume 150 L 75 L 35 L
Spreading Payload 100 kg 50 kg 25 kg
Max Discharge Rate 400 kg/min 108 kg/min 108 kg/min
Spreader Type Centrifugal Disc + Screw Feeder Centrifugal Disc Centrifugal Disc
Compatible Granule Size 0.510 mm 0.510 mm 0.510 mm
Effective Spread Width 310 m ~8 m ~58 m

Heavy-Lifting Mode (T100 Only)

Feature Agras T25 Agras T50 Agras T100
Lifting Mode Not Available Not Available Included (Winch System)
Max Lifting Capacity Up to 100 kg (recommended 85 kg for winch ops)
Lifting Cable Length 10 m (standard), 1015 m recommended
Applications Remote supply transport Irrigation equipment delivery Firefighting (water bucket deployment)

Power and Battery Efficiency

Feature Agras T25 Agras T50 Agras T100
Battery Model DB800 DB1560 DB2160
Battery Capacity 25,000 mAh 30,000 mAh 41,000 mAh
Nominal Voltage 52.22 V 51.8 V 52 V
Energy (Approx.) ~1300 Wh ~1550 Wh ~2130 Wh
Battery Weight ~9.5 kg ~13.2 kg 14.7 0.3 kg
Battery Type Li-ion Li-ion Li-ion
Swappable Battery Yes Yes Yes (Supports Dual Battery for Lifting)
Charging System C8000 + D9000i Generator D12000iE Generator D12000iE Generator
Max Charging Power 7200 W 12,000 W 12,000 W
Charging Time ~912 min ~912 min ~912 min
Flight Time (No Payload) ~20 min ~20 min ~23 min
Flight Time (Full Payload) ~1015 min ~1015 min ~913 min

Autonomy & Obstacle Avoidance

Feature DJI T25 DJI T50 DJI T100
360 Obstacle Sensing Dual Radar + Binocular Vision Dual Radar + Binocular Vision Dual Radar + Binocular Vision (Enhanced)
Sensing Range Up to 30 m Up to 30 m Up to 60 m (Lidar-enhanced)
Obstacle Detection Detects front/rear obstacles Detects front/rear obstacles Detects fine objects (e.g., wires, branches)
Terrain Following Yes Yes Yes
Lidar Scanner No No Built-in spinning Lidar (for 3D mapping)
AR Display System Not supported Not supported Live 3D visualization via Goggles or RC screen
Advanced Visualization No No Shows path, landing points, hazard overlays
Millimeter Wave Radar (EIRP) No < 20 dBm < 20 dBm
Laser Radar FOV Vertical 272, Horizontal 60
Front Radar FOV 360 H / 45 V 360 H / 45 V 360 H / 45 V
Rear/Down Radar FOV 45 / 22.5 45 / 22.5 45 / 22.5
Quad Vision System 360 H / 180 V
FPV Camera FOV 86 H / 108 V
Safe Obstacle Avoidance Speed 7 m/s 10 m/s 13.8 m/s
Effective Avoidance Height 1.0 m 1.2 m 1.5 m
Operating Environment Lighted, clear surroundings Same Same
Operating Temperature 0C to 40C 0C to 40C 0C to 40C

Remote Controller Experience

Feature DJI T25 DJI T50 DJI T100
Model RM700B RM700B TKPL 2 (RC Plus 2)
Screen Size 7.02 LCD 7.02 LCD 7.00 LCD
Resolution 1920 1200 1920 1200 1920 1200
Brightness 1200cd/m 1200cd/m 1400cd/m
Operating Temperature -20C to 50C -20C to 50C -20C to 50C
Storage Temperature -30C to 45C (varies by time) Same Same
Video Transmission O4 (~7km FCC) O4 (~7km FCC) O4 (~7km FCC)
Wi-Fi Protocol Wi-Fi 6 Wi-Fi 6
Bluetooth Bluetooth 5.1 Bluetooth 5.1
GNSS GPS + Galileo + BeiDou Same Same
4G Connectivity Drone & Controller Drone & Controller Drone & Controller
FPV Camera Support Standard FPV Standard FPV HD FPV with gimbal + zoom
Autonomous Functions One-tap takeoff & mission Same Same
Mission Apps DJI Agras / Pilot 2 Same Same
Internal Battery Runtime 3h 18m 3h 18m 3.8 hours
External Battery Runtime 2h 42m 2h 42m 3.2 hours
Charging Type USB-C, 65W (20V) Same Same
Charging Time ~2 hours (internal or combo) Same Same
Charging Temperature 5C to 40C Same Same

Handling & Transport Considerations

Feature DJI T25 DJI T50 DJI T100
Folding Mechanism Foldable arms & props Foldable arms & props Foldable arms & props
One-Person Setup Easy Moderate effort Two-person recommended
Transport Mode Dimensions 1105 1265 975 mm 1125 1100 685 mm 1105 1265 975 mm
Unfolded Dimensions 2670 2580 750 mm 2800 2342 790 mm 3220 3224 975 mm
Empty Aircraft Weight ~21.2 kg ~39.5 kg ~77 kg (spraying config)
Max Takeoff Weight 54 kg 101 kg 177 kg
Vehicle Transport Fits in pickup bed Pickup/SUV Truck or trailer recommended
Lift Handles / Design Integrated grips Integrated grips Dual-side lifting zones
Setup Time <5 minutes ~58 minutes 810 minutes (2 people)
Field Deployment Suitability Excellent for narrow areas, orchards Good for medium fields Ideal for large, open fields

Smart Ecosystem & DJI SmartFarm

Feature DJI T25 DJI T50 DJI T100
DJI SmartFarm Integration Supported Supported Supported
Flight Data Sync Yes Yes Yes
Spray Reports Generates flight/spray reports Generates flight/spray reports Generates flight/spray reports
Crop Management Tools Cloud access to SmartFarm features Cloud access to SmartFarm features Cloud access + enhanced AI compatibility
AI & Precision Ag Support Not included Not included Ready for DJI AI features & base station links
Target User Benefit Small-scale record keeping Mid-scale crop analytics Advanced analytics, AI diagnostics, optimization

Choosing the Right Drone

Model Best For Key Strengths Ideal User
DJI T25 Small-scale farms, orchards, research plots Lightweight & compact Fast setup Solo operation capable Growers managing multiple small fields, demo sites, universities, or tight terrain applications
DJI T50 Mid-sized operations, contract sprayers, co-ops Balanced capacity vs. portability Higher efficiency Easy to transport Farms with medium-sized acreage, or service providers covering various regions
DJI T100 Large-scale commercial farms, agricultural service providers Maximum spray & spread payload AI-ready + Lidar Industrial-grade durability Professional users needing precision, heavy-duty spraying, or future expansion into AI, mapping, and lifting tasks

The DJI Agras T100 offers unmatched spraying capacity, speed, and adjustabilityideal for high-demand agricultural operations needing speed and precision. The T50 balances size and capacity, while the T25 remains the go-to for compact and cost-sensitive jobs.
