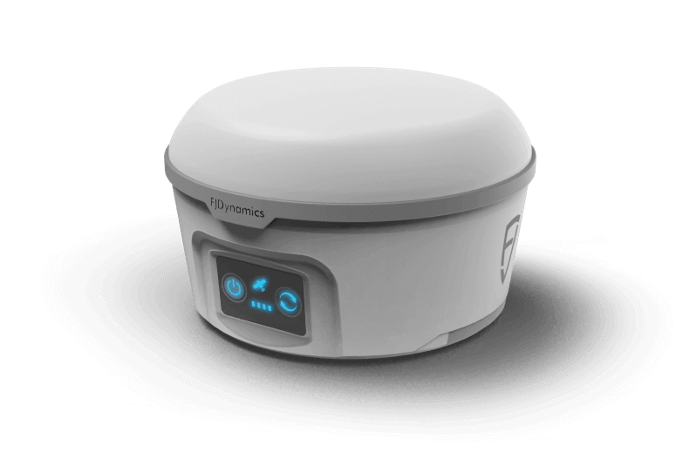

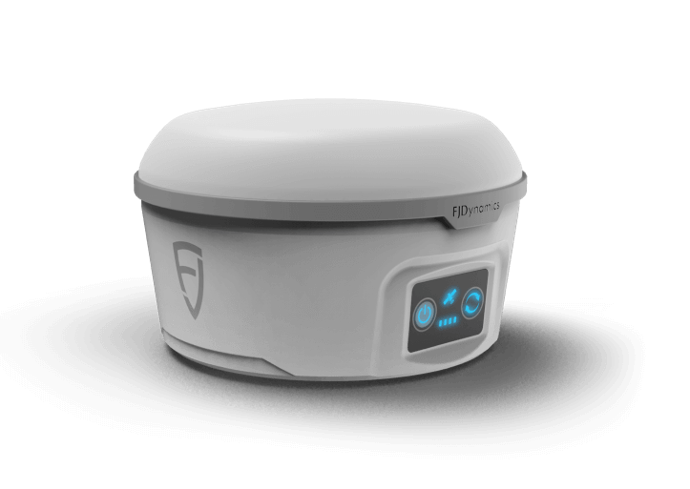

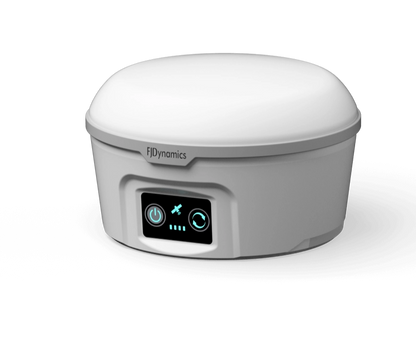

FJD Satellite Navigation Base Station
FJD Satellite Navigation Base Station

FJD

FJD Satellite Navigation Base Station

Out of stock
$0.00 USD

Free shipping over $599.00

Money Back Guarantee

Back in Stock Notification

Sign up to be the first to know when it's here

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Pairs well with

Centimeter-level

3D Positioning

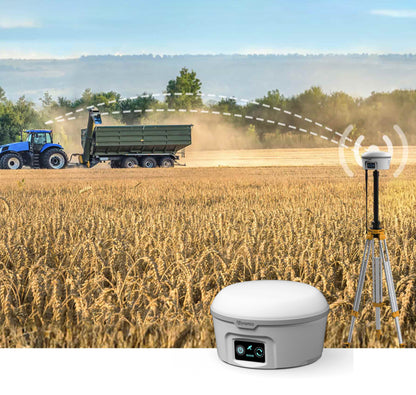

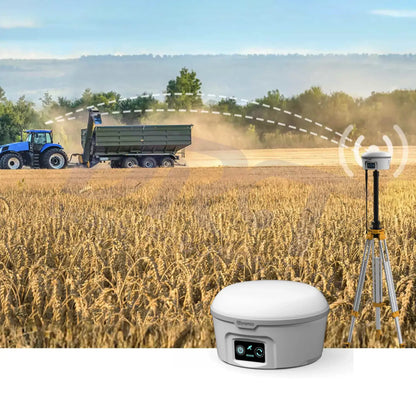

Provides real-time differential information for various machines and realizes centimeter-level 3D positioning and precise orientation, covering a radius of 5km where there is no interference or shield.

Global Signal Coverage
The satellite base station receives signals from 16 frequency bands of 5 satellite navigation systems, including GPS, GLONASS, Beidou, GALILEO and QZSS.

Automated Channel Detection
With built-in anti-interference and high-gain antenna and high-performance receiver, it is able to receive more satellite signals through automated channel detection, and reduce user operations.

Quick Setup
IP65 industrial protection is suitable under various outdoor operating environmental conditions. Rapid GNSS base station setup can be realized so long as the right location is selected.

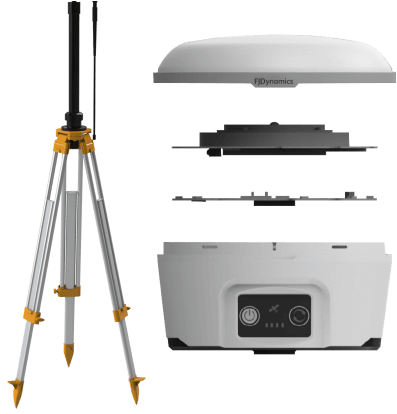

Modular Design
Base station module realizes base station positioning.
Bracket realizes unobstructed working environment and ensures the accuracy and strength of signals.
Antenna stand module (optional) secures stronger positioning signals with the support of external antenna.

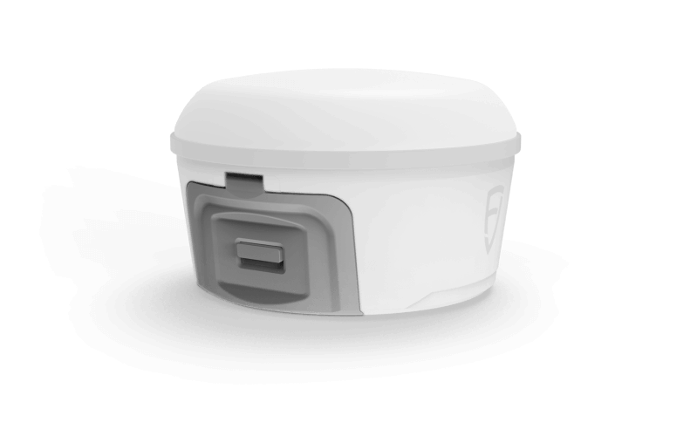

Removable Battery

Dual-battery provides 12-hour duration and AC power supply supports hot plugging. Battery can be replaced without powering off. Continuous operation is guaranteed.
Description

Specification

Satellite and Positioning

Satellite Tracking 624 channels available.
Support complete constellation of Beidou.
Can be upgraded to Beidou III satellite.
Tracking Features BDS: B1/B2, (Can be upgraded to B3)
GPS: L1/L2
GLONASS: L1/L2
GALILIEO: E1/E5B
QZSS: L1/L2
RTK Positioning Accuracy Plane: 1cm+1ppm
Elevation: 1.5cm+1ppm
Single Point Positioning Plane: 1.5m
Elevation: 2.5m
DGPS Accuracy Plane: 0.4m
Elevation: 0.8m
Positioning Update Rate 1Hz, 2Hz, 5Hz, 10Hz and 20Hz
Initialization Time < 10 seconds
Recapture < 1 second
Initialization Reliability > 99.9%
Differential Data Transport Format RTCM v3.0/3.2
Battery Features Double battery compartments,
10400mAh 7.4V (single battery 5200 mAh)
Mobile station lasts up to 12 hours,
hot plugging supported
Power Adapter Input: AC 100-240V 50/60Hz Output: 12V 5A
Battery Charger QC3.0 fast charge

Physical Properties

Dimensions Φ178*110mm
Material Aluminum alloy
Waterproof and Dustproof IP65
Working Temperature -40℃ - 65℃
Storage Temperature -50℃ - 75℃
